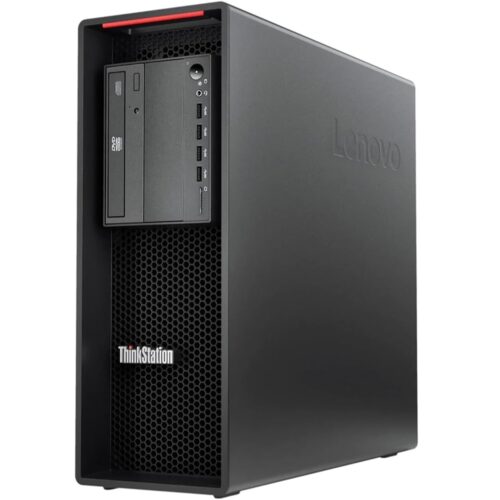

Lenovo Thinkstation P520 Intel(R) Xeon(R) W-2133 3.60GHz 32GB DDR4 512GB NVMe SSD QUADRO K620 W10

VERSATILE WORKSTATION CONFIGURED YOUR WAY

The most powerful single CPU workstation— a next-generation system that packs enough punch for any job and is reliable enough for missioncritical environments. Customize a ThinkStation® P520 for the power, performance, and usability you need, including the highest number of cores and insane frequencies with the latest high-performing Intel Xeon W processors and professional NVIDIA Quadro RTX graphics.

Specification:
Processor: Intel Xeon W-2133 Cores: 6 Threads: 12 Base Speed 3.6GHz, Max Turbo: 3.9GHz Cache 8.25MB Memory Speed DDR4-2666
Chipset: Intel C422
Operating System: Windows 10 Pro for Workstations
Graphics: NVIDIA Quadro K620 2GB Dedicated graphics
Total Memory: 32GB DDR4 Maximum Upgradable Up to 512GB DDR4, 2933MHz 8 DIMM Slots
Total Storage: 512GB SSD
Up to 8 total drives3
Up to 4 internal storage bays

Card Reader:
• 15-in-1 card reader
• SD card reader

Multi-Media:
Audio Chip: High Definition (HD) Audio, Realtek® ALC662 codec
Speakers: Single speaker
Power Supply

Mechanical:
Form Factor: Tower (33L)
Dimensions (WxDxH): 165 x 455x 446 mm (6.5 x 17.9 x 17.6 inches)
Weight: 24 kg (52.91 lbs, maximum configuration)

CONNECTIVITY
Front Ports
(4) USB 3.1 Gen 1 Type-A*
(1) Mic/Headphone Combo Jack
(1) Thunderbolt™ 3 Type-C4
(1) eSATA⁴
(1) USB 3.1 Gen 1 Type-C*⁴
Rear Ports
(4) USB 3.1 Gen 1 Type-A*
(2) USB 2.0 Type-A
(2) PS/2
(1) RJ-45 Gigabit Ethernet
(1) Audio Line-In
(1) Audio Line-Out
(1) Microphone-In
(1) Serial Port¹
(1) Rear Thunderbolt Adapter1
(1) eSATA

Expansion Slots
(2) PCIe x16 Gen 3
(1) PCIe x8 Gen 3
(2) PCIe x4 Gen 3
(1) PCI

DESIGN
Dimensions (WxDxH)
(mm): 165 x 460 x 440
(inches): 6.5 x 18.1 x 17.3
Weight
Max configuration: 52.91lbs (24kg)

ISV CERTIFICATIONS
Adobe®, Autodesk®, AVID®, Altair®,
AVEVA™, Bentley®, Dassault®,
Nemetschek®, PTC®, Siemens®,
Barco®, Eizo®, McKesson®
GREEN CERTIFICATIONS
ENERGY STAR® 7.0
EPEAT®⁷
GREENGUARD®
RoHS Compliant
80 PLUS® Platinum

Warranty: 6 months hardware return to base excludes battery, charger and software.
