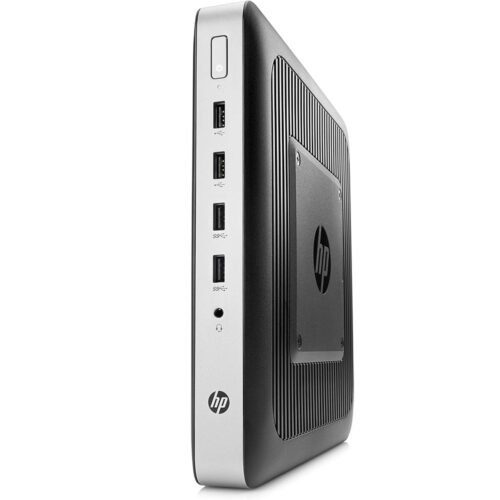

Hp T630 Thin Client AMD GX-420GI Radeon R7E 8GB DDR4 32GB MSATA W10 Pro COA

Features:
• AMD GX-420GI SOC; 2.0 – 2.2 GHz quad-core with a Radeon R7E based graphics core
• DDR4 dual-channel SDRAM system memory; up to 1,866 MT/s transfer rate; two SODIMM slots; up to 32 GB supported1
• (2) DisplayPort™ 1.2 video outputs supporting up to Ultra High Definition (UHD)/4K (3840 x 2160) resolutions
• Solid-state flash memory storage; M.2 form factor modules; support for up to 2 modules for maximum local storage capacity and data management
• Active thermal management technology monitors component operating temperatures, throttles SOC operation if appropriate, and prevents unit thermal shutdown
• Gigabit Ethernet (GbE) network connection supported via an integrated Realtek GbE NIC module
• (2) SuperSpeed USB 3.0 and (2) Hi-Speed USB 2.0 on front, (2) Hi-Speed USB 2.0 on rear and (1) SuperSpeed USB 3.0 inside the chassis.
• Legacy ports include PS/2 keyboard and mouse, up to (2) serial ports and up to (1) VGA video output
• Integrated PC speaker for basic audio playback; 3.5 mm headset audio port on front and 3.5 mm audio port on rear that can be configured as line in or line out supporting headphones, external speaker systems, or microphone

Note: Ex Lease Think Client PC. NO OS Installed. Power ON tested good working condition.

Specifications:
OPERATING SYSTEMS License Embedded:
Windows 10 IoT Enterprise NOT Installed
AMD GX-420GI Processor Cores: 4, 15W TDP: 2000 MHz
Frequency: 2.2 GHz Boost
Codename: Brown Falcon
Socket: FP4 Socket
Memory: 8GB Type: DDR4 dual channel SDRAM
Data Transfer Rate: Up to 1,866 MT/s
Peak Transfer Rate: 14,933 MB/s
Number of Slots 2 x SODIMM
Storage: 32GB SSD

GRAPHICS
Radeon R7E
Number of displays supported: 2
Video outputs: (2) DisplayPort™ 1.2 (standard)

Trusted Platform Module (TPM): TPM 2.0 Windows 10 IoT Enterprise and No OS models

Input/Output:
USB Interfaces:
(2) Hi-Speed USB 2.0 (front access)
(2) Hi-Speed USB 2.0 (rear access)
(2) SuperSpeed USB 3.0 (front access)
(1) SuperSpeed USB 3.0 (inside chassis)
Video Outputs:
(2) DisplayPort™ 1.2 digital outputs (standard)
NOTE: the optional VGA output does not increase the number of displays supported.

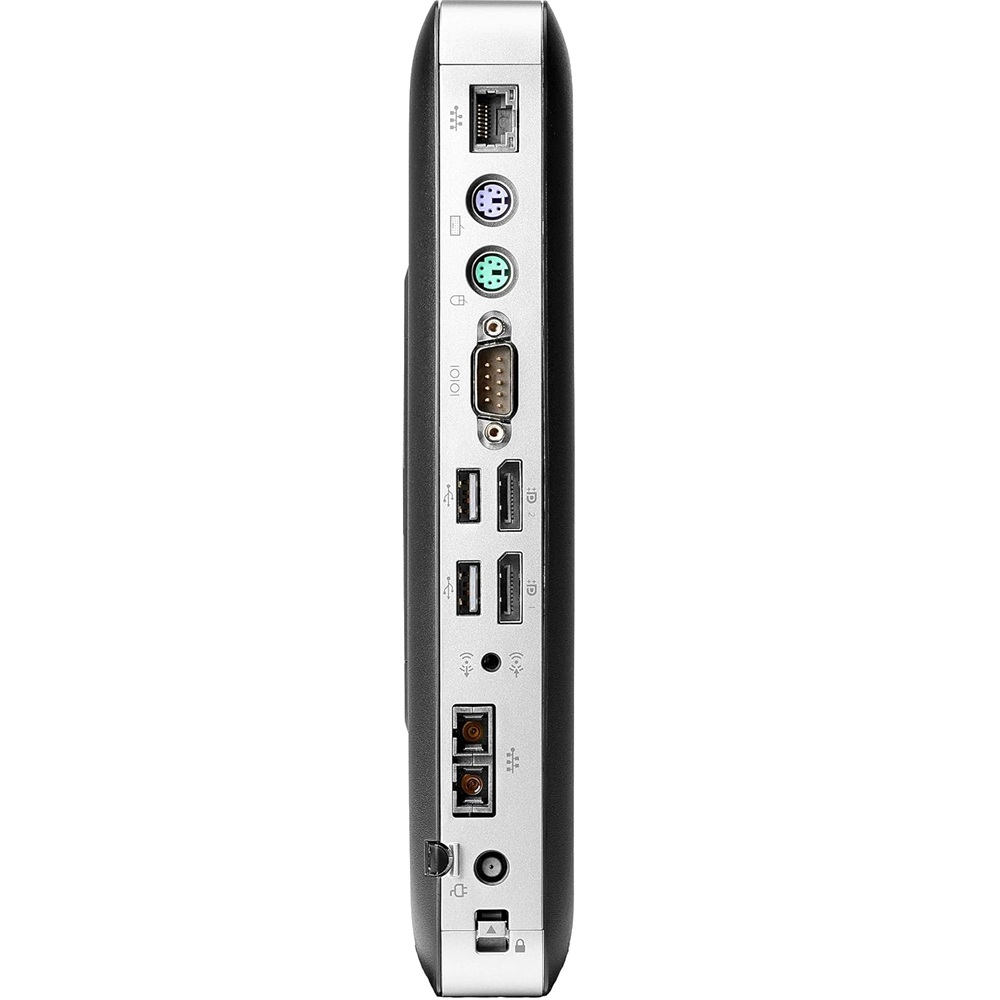

I/O Interfaces:
(2) PS/2 keyboard/mouse ports
(1) RJ45 network interface connector
(1) Serial port (standard)

Audio (1):
3.5 mm headset port (front)
(1) 3.5 mm audio combo line-out/ line-in port (rear)

AUDIO/VIDEO
Audio Subsystem
• Internal amplified speaker system for basic audio playback
• 3.5 mm headset socket (front access)
• 3.5 mm combo line-out/ line-in socket (rear access)
Audio CODECs
• MP3
• AAC Stereo
• HE AAC
• Includes hardware acceleration support
Video CODECs
• MPEG-4 part 2 (DivX, Xvid)
• MPEG-4 part 10 (H.264, AVC), Advanced Video Coding (AVC) (H.264 encode)
• MPEG-H part 2, High Efficiency Video Coding (HEVC) (H.265 decode)
• WMV 7/8/9 VC-1 & ASF Demuxer
• Includes hardware acceleration support

NETWORKING:
Realtek RTL8111HSH-CG Gigabit
Ethernet (GbE) Controller

Wi-Fi Networking:
• Intel® Dual Band Wireless-AC 3168 Wi-Fi/Bluetooth® combo adapter

WEIGHTS & DIMENSIONS
W x D x H: (vertical orientation)
With stand: 12 x 22 x 25.1 cm; 4.72 x 8.66 x 9.88 in
Without stand: 4.2 x 22 x 24 cm; 1.65 x 8.66 x 9.45 in
Volume: 2.21liters; 74.73 fl oz
System Weight (unit with stand)
With stand =1.52kg; 3.35 lb
Without stand = 1.45 kg; 3.20 lb
Shipping Weight 4.1kg; 9.04 lb

EXTERNAL POWER SUPPLY:
65W external power adapter
Worldwide auto-sensing 100-240 VAC, 50-60 Hz
Energy-saving automatic power-down
Surge-tolerant: External power adapters are sourced from a number of suppliers in order to ensure adequate supply and availability is maintained.
The actual dimensions (cm) of the power brick will vary by supplier.
Chicony: Delta, LiteOn
12.6(L) x 5.0(W) x 3.0(H) cm
10.8(L) x 4.6(W) x 2.95(H) cm
11.35(L) x 5.5(W) x 3.0(H) cm

Warranty: 6 months hardware return to base excludes software.
