ASUS NUC 13 PRO INTEL i7-13620H 2x SODIMM DDR4 1x M.2 2280 PCIe 4.0 WiFi 6E + BT TALL MINI PC BAREBONES KIT – NO CORD REQUIRES AC06C05AU

Smaller, Faster, Better, AI Ready
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.
Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifespan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.
With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.

13th Generation Intel® Core™ i7/i5/i3 with integrated Intel® Iris® Xe Graphics or Intel® UHD Graphics, and Intel vPro® Technology for selected SKUs.
14 Processor Cores (6P+8E), 20 threads, 24MB Smart Cache, 35W TDP
For Business, the fast memory up to 64GB dual-channel DDR4-3200 SODIMMs
Wired and wireless connections are lightning fast with up to a 2.5Gbps Intel® Ethernet port and Intel® Wi-Fi 6E (Gig+)
Dual HDMI 2.1and Thunderbolt™4 ports give businesses flexibility to connect up to 4K extended displays

Operating System: Without OS Support for Windows 11* Compatible with various Linux distributions

Specification:
CPU: Intel® Core™ i7-13620H Processor 24M Cache, up to 4.90 GHz (TDP28W)
Total Cores : 10
# of Performance-cores 6
# of Efficient-cores 4
Total Threads : 16
Chipset: Integrated
Graphics: Integrated – Intel® Iris® Xe Graphics (i7/i5)
*Intel® Iris® Xe Graphics requires 128-bit dual channel memory for optimal performance

Memory: 2 x SODIMM slots, with support for up to DDR4-3200MHz MT/s memory 64GB
Storage:
1 x M.2 2280 PCIe Gen4x4, supports 128GB~8TB NVMe™ SSD
1 x M.2 2242 SATA supports 256GB~1TB SSD
1 x 2.5″ SATA 6Gb/s, supports 4TB 7~15mm HDD*

Wireless Data Network:
Intel® Wi-Fi 6E (Gig+) 2×2 + Bluetooth® 5.3 Wireless Card
*Bluetooth v5.2 and later version functions to be supported in Windows 11 or later.
*WiFi 7 and WiFi 6E 6GHz regulatory may vary among countries.

LAN:
1 x Intel® I226V, 2.5G LAN

Audio:
Realtek audio via 3.5mm stereo headset jack
Supports 4 HD audio streams via 4 Digital ports (over HDMI& DP)

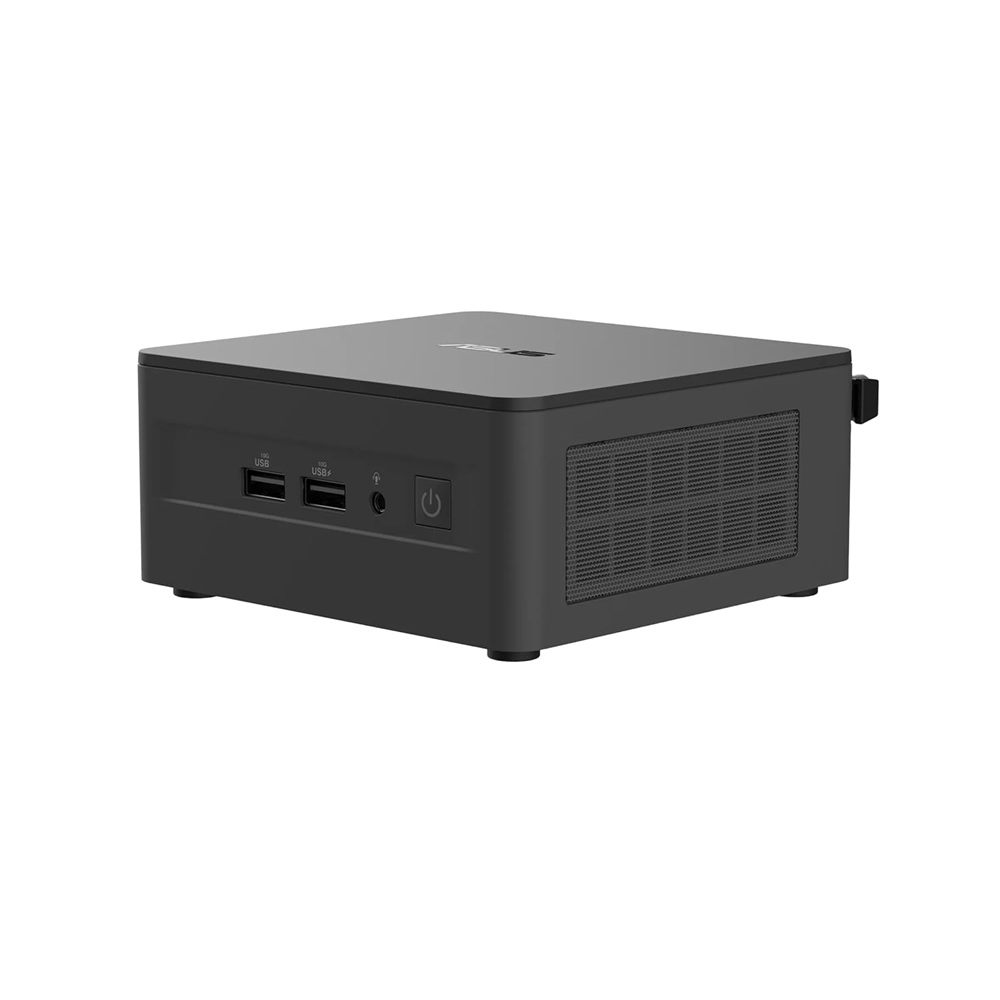

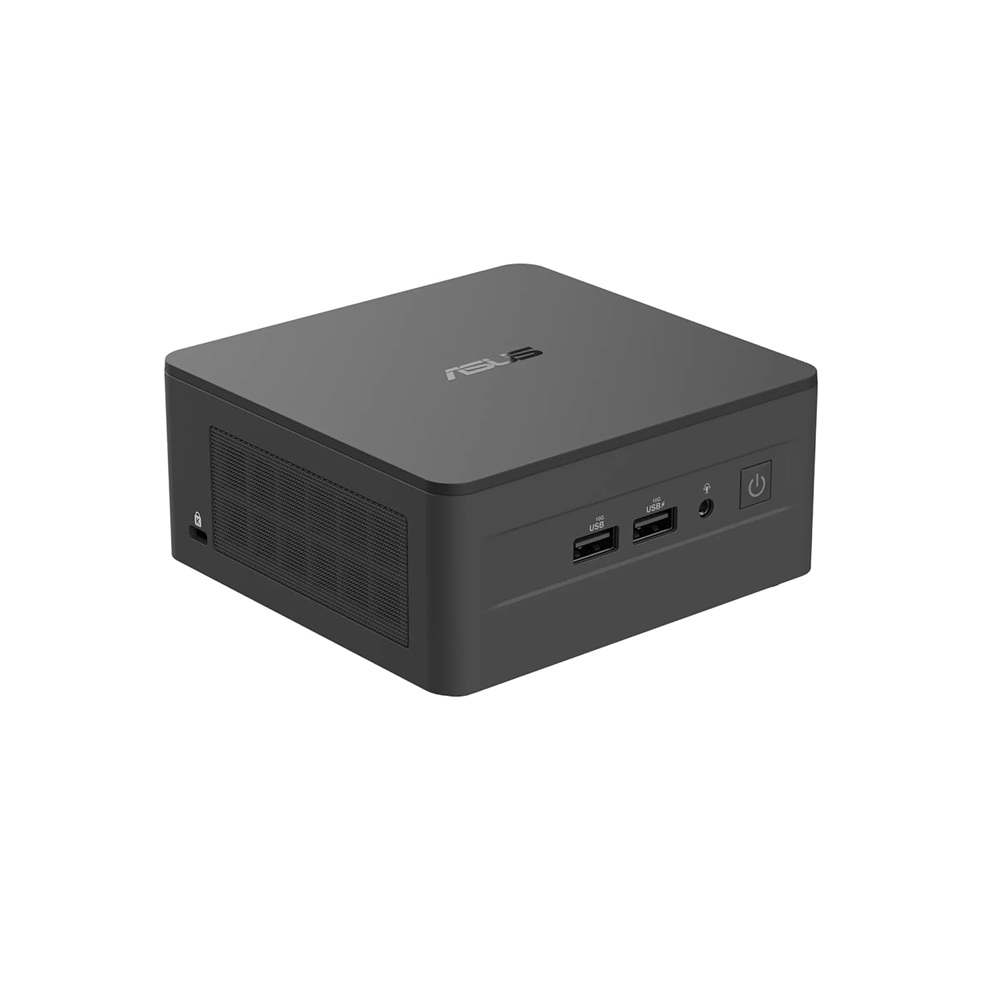

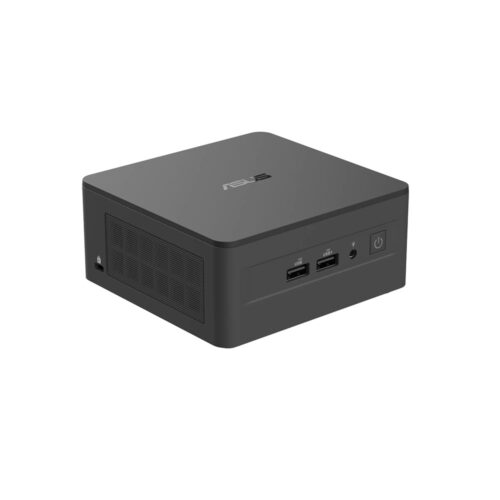

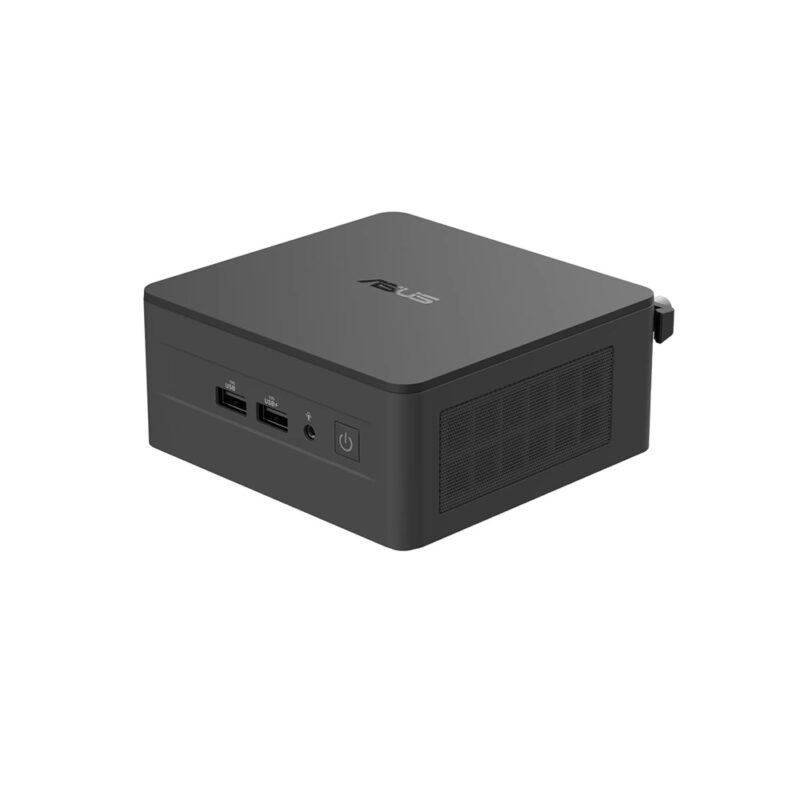

Front(Side) I/O Ports:
Front I/O: 2 x USB 3.2 Gen2 Type A (1x Front Panel, 1x Front Panel Charging)

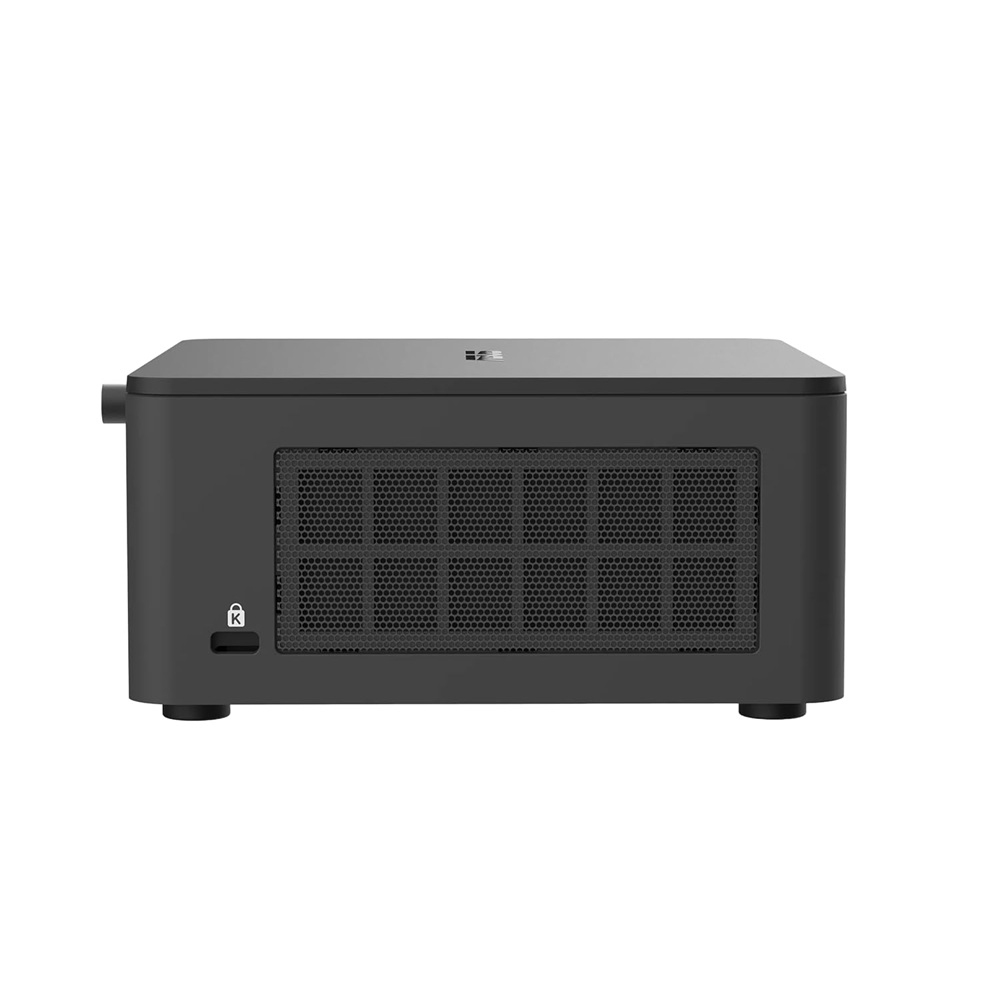

Side I/O: 1 x Kensington Lock (Left side of Chassis) + Cable Locking Arm

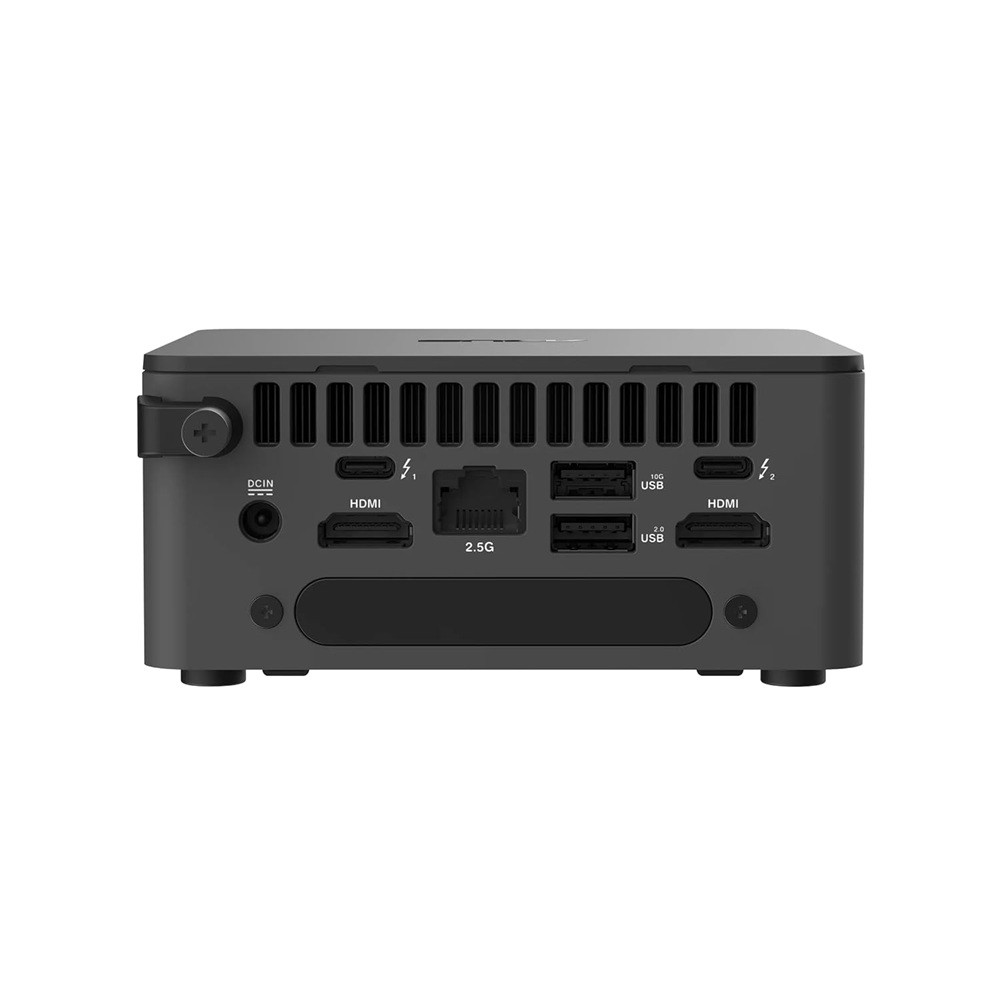

Back I/O Ports:
2 x Thunderbolt 4 Type-C Ports
1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 (5V/0.5A)
2 x HDMI 2.1 (Up to 4K @ 60Hz)
1 x 2.5G RJ45 LAN
1 x DC-in

Power Supply:
120W Power Adapter (i7/i5)

Dimensions (W x D x H):
Tall Chassis: 117 x 112 x 54 mm (0.7L)

Weight:
Tall Chassis: 750g(barebone)
